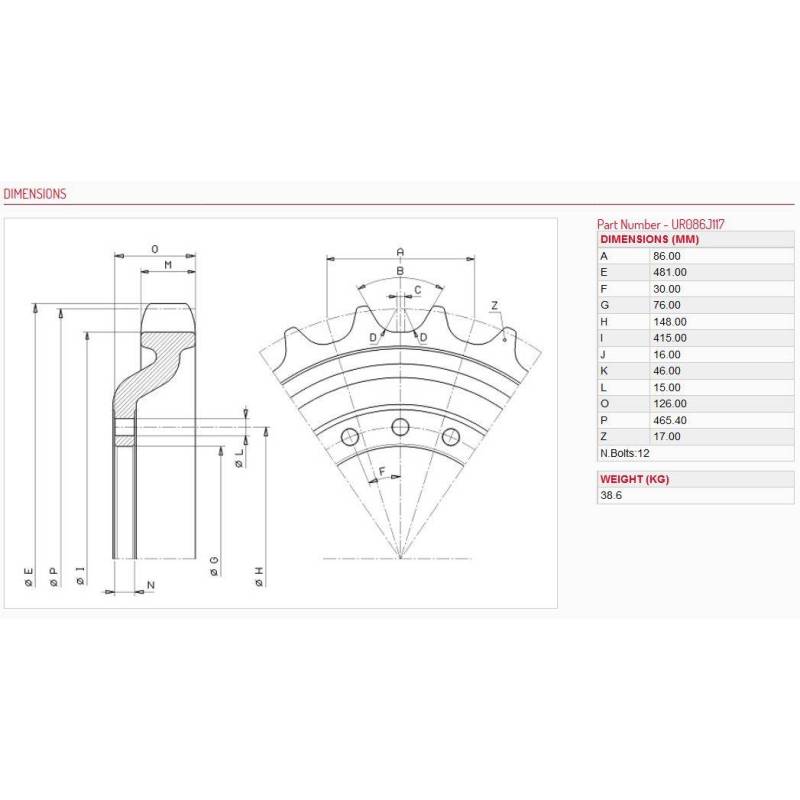

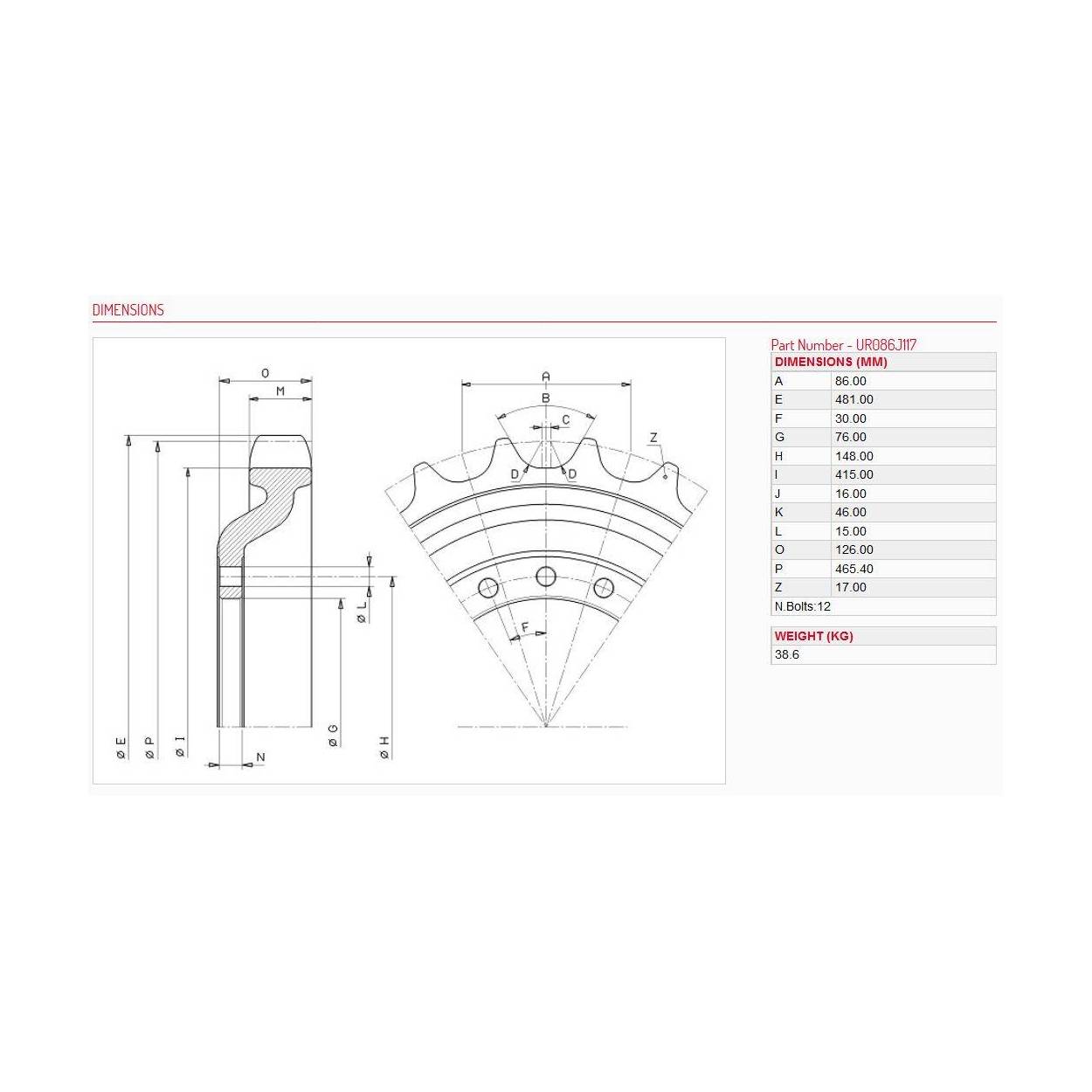

Dimensions: |
||
|---|---|---|
| A | 86.00 mm | |
| E | 481.00 mm | |
| F | 30.00 mm | |
| G | 76.00 mm | |
| H | 148.00 mm | |
| I | 415.00 mm | |
| L | 15.00 mm | |
| O | 126.00 mm | |
| P | 465.40 mm | |
| Z | 17.00 mm | |
Additional Information: |
|
|---|---|
| number of holes / information | 12 |
Fits, among others, to machines: |
|||
|---|---|---|---|
| Manufacturer: | Model: | Type: | Version: |
| JCB | 150 | - | T |
| JCB | 205 | - | T |
| VOLVO | MCT85 | - | C |
| VOLVO | MTC110 | - | C |
Alternative Indexes / Cross |
||
|---|---|---|
| 17230314 | 332/X6779 | LK618 |
| VOE17230314 | ||
Producent: USCO SpA | Marka własna: ITR |
Adres: Via delle Nazioni, 65 41122 Modena, Włochy | Kontakt: info@usco.it +39 059 9780111 |
Certyfikat wyłącznej sprzedaży produktów ITR
GLIMAT SP.ZO.O. jest wyłącznym dystrybutorem podwozi gąsienicowych marki ITR na terenie Polski.
Dokładamy wszelkich starań, aby produkty, które udostępniamy do Państwa dyspozycji były tylko ze sprawdzonych źródeł.
Wieloletnie doświadczenie w pozyskiwaniu nowego asortymentu, oparte o szczegółowe analizy i budowanie długofalowych relacji z naszymi kontrahentami, pozwala nam na stworzenie bardzo korzystnych watunków gwarancyjnych dla naszych klientów.
- Na wszystkie elementy podwozi gąsienicowych obowiązuje 24 miesiące gwarancji
- Części zamienne sprzedawane przez Glimat Sp z o.o. są objęte gwarancją w zakresie wad materiałowychbądź przetworzenia materiału (wykonania) w warunkach normalnego zużycia i użytkowania przez okres 24 miesięcy poczynajac od daty dostarczenia bezpośredniemuklientowi (licząc od daty na fakturze lub liście przewozowym)
Drive wheel JCB 150 T
Reference
UR086J117
1 138,71 zł Tax excluded
zł1,400.61 Tax included
AVAILABLE AT CENTRAL WAREHOUSE
Personal collection: immediately
Courier delivery:
Manufacturer's warranty
Fast delivery
Expert support
Easy returns
-
Frequently bought together
Drive wheel gear ring for screwing. For a chain with a pitch of 86, number of teeth 117.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of models of tracked machines.
From mini excavators to mining machines. Sprockets are produced through a casting process, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated, and are generally used for excavators or other machines with chassis working in similar applications.
Drive Wheels ITR for JCB 150 T
The range of ITR drive wheels includes equipment from JCB® 8008 (machine working weight 0.95 tons) to KOMATSU® PC 1250 (machine working weight 110 tons).
Drive Wheels ITR - Functionality
Bolt mounting. Tightening method in the machine's operating manual. It is important to obtain information about the installation of the sprocket bolt and torque specifications.
Functions: Transferring drive loads from the main transmission to the track through bushings. Durability equal to at least one side of the bushing, crack resistance. Sprockets are produced to fit the bushings precisely. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase sprocket lifespan. Drive wheel rings are forged or cast from deep-hardened steel, which provides nearly double the hardening depth compared to ordinary steel. Material SCMn3A. Hardening 50 – 55 HRC.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of models of tracked machines.
