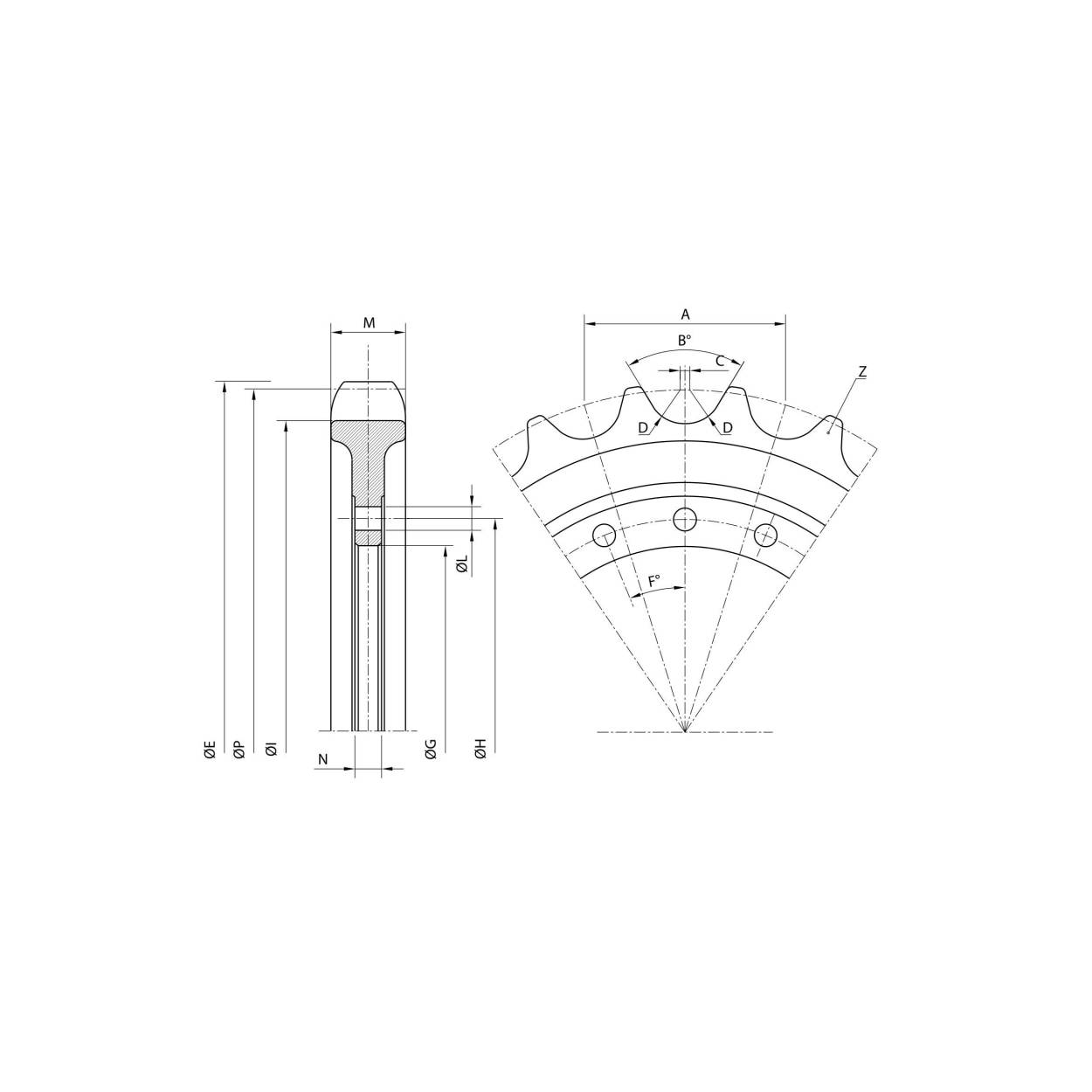

Dimensions: |
||
|---|---|---|
| A | 101.60 mm | |
| D | 16.10 mm | |
| E | 386.20 mm | |
| F | 30.00 mm | |
| G | 210.00 mm | |
| H | 232.00 mm | |
| I | 344.30 mm | |
| L | 13.50 mm | |
| M | 37.00 mm | |
| N | 12.00 mm | |
| P | 376.50 mm | |
| Z | 23.00 mm | |
Additional Information: |
|
|---|---|
| Number of holes / information | 12 |
Fits the following machines: |
|||
|---|---|---|---|
| Manufacturer: | Model: | Type: | Version: |
| PEL JOB | EB350 | - | XT |
| PEL JOB | LS386 | - | - |
| VOLVO | EC35 | - | - |
| VOLVO | ECR38 | - | - |
Alternative Indexes / Cross References |
||
|---|---|---|
| 11802523 | MU3100 | UR101Z923 |
| VOE11802523 | ||
Producent: USCO SpA | Marka własna: ITR |
Adres: Via delle Nazioni, 65 41122 Modena, Włochy | Kontakt: info@usco.it +39 059 9780111 |
Certyfikat wyłącznej sprzedaży produktów ITR
GLIMAT SP.ZO.O. jest wyłącznym dystrybutorem podwozi gąsienicowych marki ITR na terenie Polski.
Dokładamy wszelkich starań, aby produkty, które udostępniamy do Państwa dyspozycji były tylko ze sprawdzonych źródeł.
Wieloletnie doświadczenie w pozyskiwaniu nowego asortymentu, oparte o szczegółowe analizy i budowanie długofalowych relacji z naszymi kontrahentami, pozwala nam na stworzenie bardzo korzystnych watunków gwarancyjnych dla naszych klientów.
- Na wszystkie elementy podwozi gąsienicowych obowiązuje 24 miesiące gwarancji
- Części zamienne sprzedawane przez Glimat Sp z o.o. są objęte gwarancją w zakresie wad materiałowychbądź przetworzenia materiału (wykonania) w warunkach normalnego zużycia i użytkowania przez okres 24 miesięcy poczynajac od daty dostarczenia bezpośredniemuklientowi (licząc od daty na fakturze lub liście przewozowym)

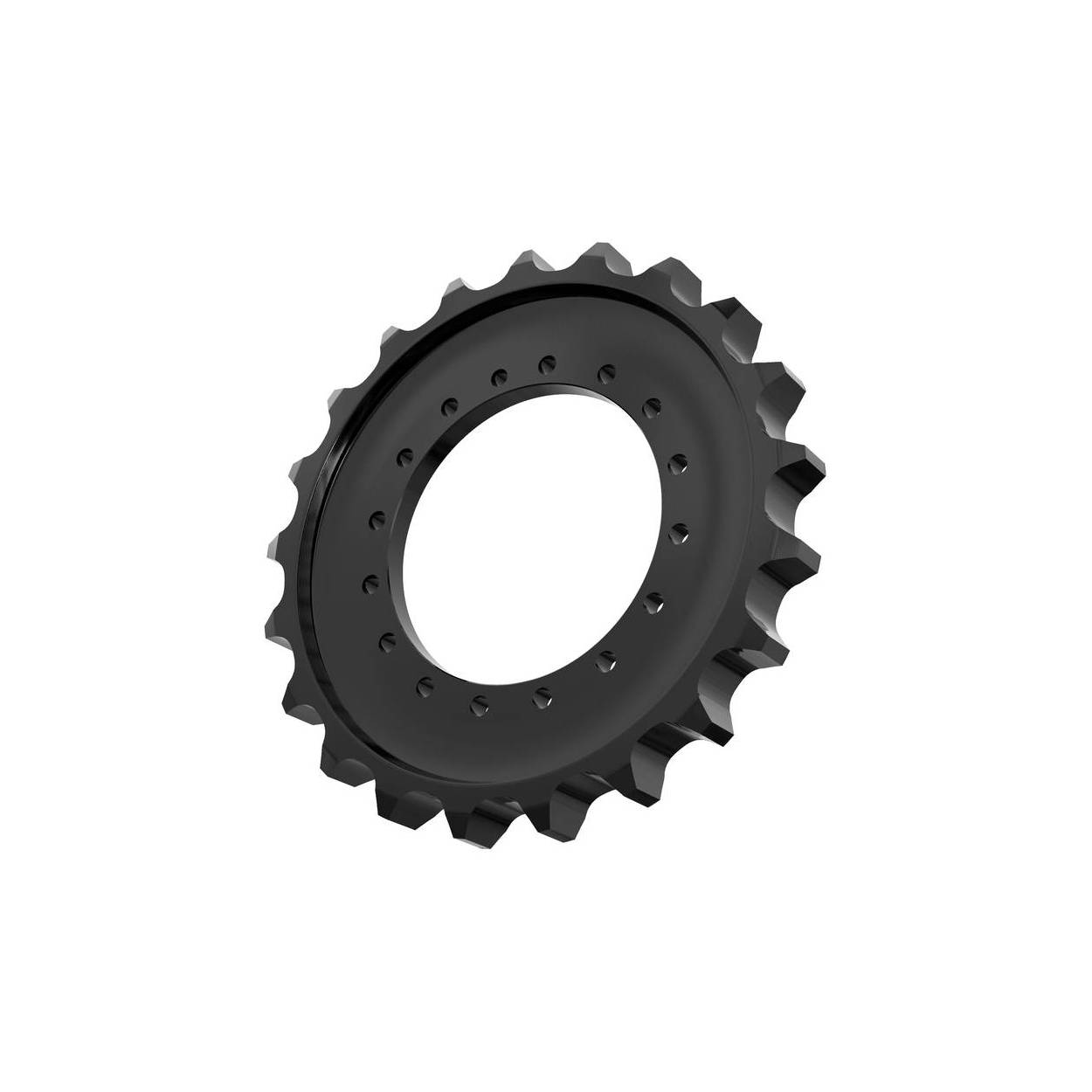

Drive wheel VOLVO ECR38
Reference
UR101Z923
273,93 zł Tax excluded
zł336.93 Tax included
Personal collection: immediately
Courier delivery:
Manufacturer's warranty
Fast delivery
Expert support
Easy returns
-
Frequently bought together
Drive wheel gear ring for bolting. For a chain with a pitch of 101, number of teeth 923.
The production of ITR sprockets and segments for mini-excavators is suitable for a wide selection of tracked machine models.
From mini-excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined and heat-treated, and generally used for excavators or other machines with undercarriages working in similar applications.
Drive wheels ITR for VOLVO ECR38
The range of ITR drive wheels includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive wheels ITR - Functionality
Bolt mounting. Tightening method in the machine's operating manual. It is important to obtain information on the mounting of the sprocket bolt and torque specifications.
Functions: Transferring drive loads from the main transmission to the track via bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are manufactured to precisely fit the bushings. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase the sprocket's lifespan. Gear rims are forged or cast from deep-hardened steel, providing nearly twice the hardening depth of ordinary steel. Material SCMn3A. Hardening 50 – 55 HRC.
The production of ITR sprockets and segments for mini-excavators is suitable for a wide selection of tracked machine models.
All company and product names are protected by copyright. All numbers, symbols, and manufacturer names
are used for identification purposes only and do not imply that any of the listed items is a product of
the respective manufacturer.
