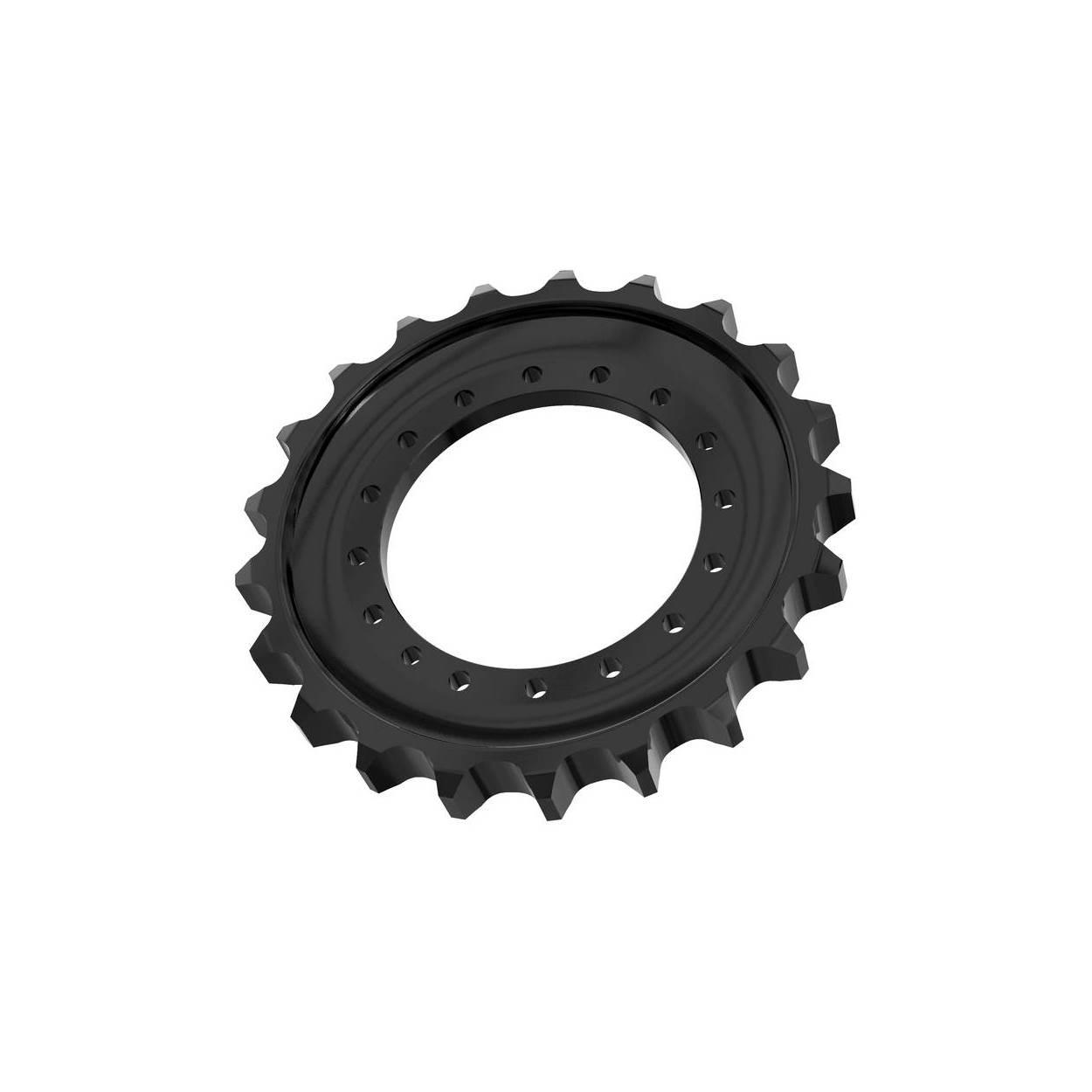

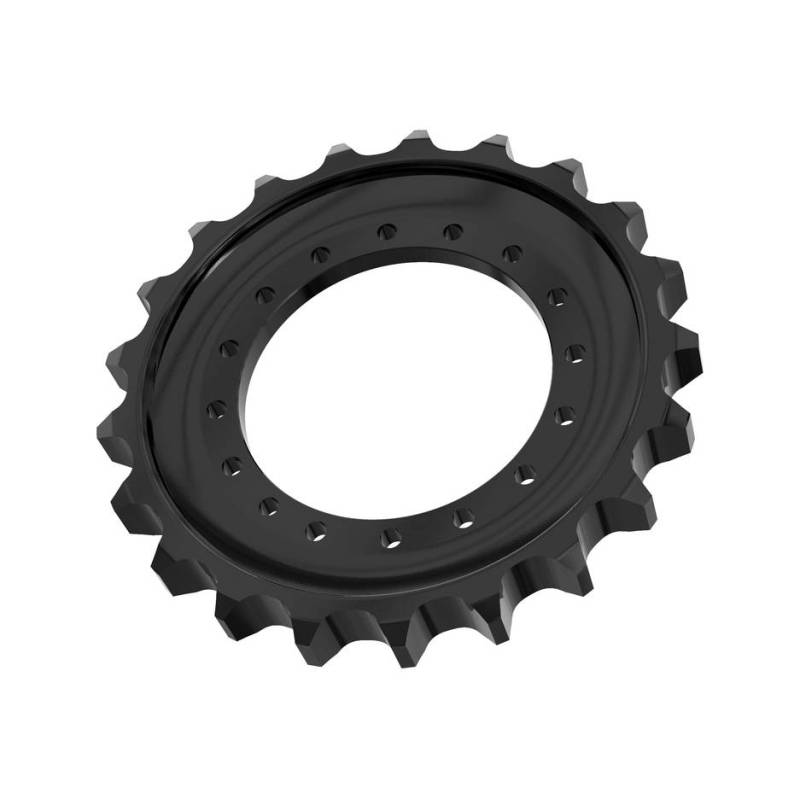

Drive wheel VOLVO ECR58

Our range of ITR sprockets and segments for mini excavators includes a wide selection of track-driven machine models.

From mini excavators to mining machines. Drive wheels, including sprockets, are produced through casting, whereas segments are manufactured by forging.

Drive wheels are cast, machined, and heat-treated products, ideal for use in excavators and other undercarriage machines operating in similar conditions.

Drive Wheels ITR for VOLVO ECR58

In the ITR drive wheels offer, you will find products suitable for various machines, from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons). Our drive wheels are available for a wide range of machines, ensuring reliability and performance.

Drive Wheels ITR - Functionality

Drive wheels with bolt mounts. Learn how to properly tighten them using the machine's manual. Ensure you have information about chain wheel bolt installation and the appropriate torque.

Features: Transmitting drive loads from the main gearbox to the track through bushings. Durability equal to at least one side of the bushing, crack resistance. Drive wheels are manufactured to fit the bushings precisely. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted drive wheels: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase the drive wheel's lifespan. Drive wheel rims are forged or cast from deep-hardened steel, providing nearly twice the hardening depth compared to ordinary steel. Material SCMn3A. Hardening 50 – 55 HRC.

Our production of ITR sprockets and segments for mini excavators supports a wide selection of machine models, especially those with drive wheels, ensuring reliability and performance.
