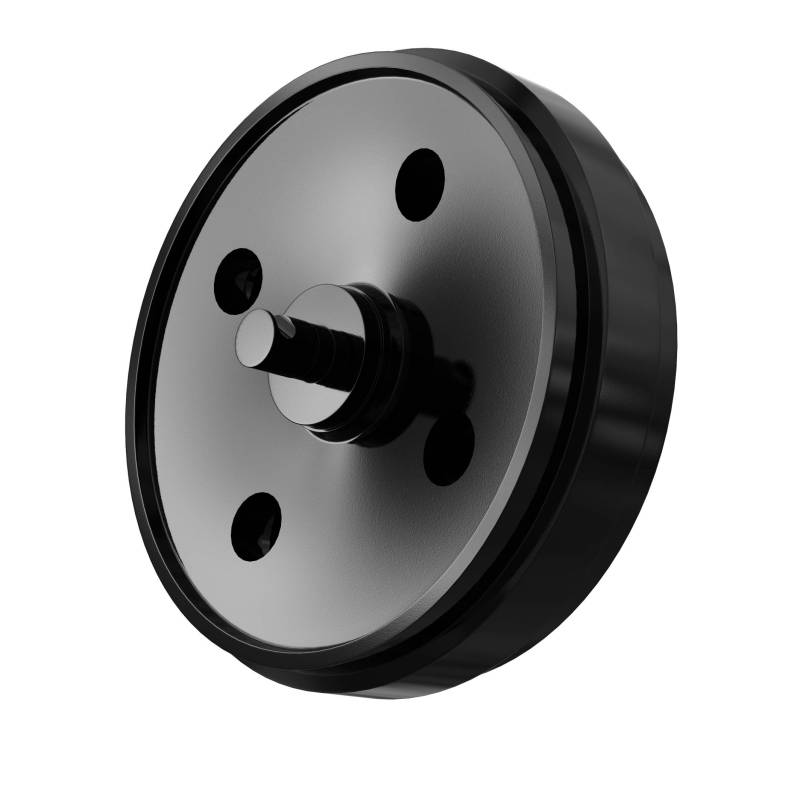

Tension wheel YANMAR B15

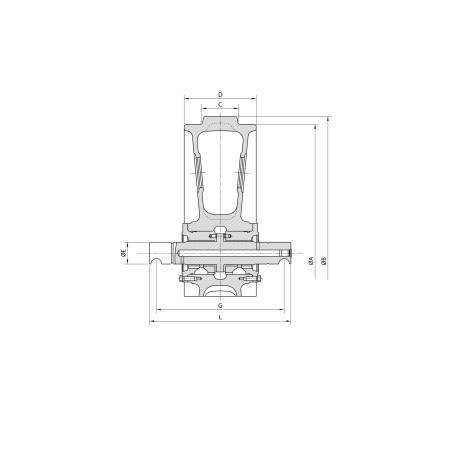

Track tensioning wheels. Inner guide flange width 28mm complete with shaft.

Track tensioning wheels ITR for mini excavators and compact loaders ensure optimal track tension by utilizing the latest design and manufacturing technologies.

ITR Tensioning Wheel for YANMAR B15

Our Track tensioning wheels are made from selected high-quality steel alloys and properly heat-treated to ensure exceptional field performance in extreme working conditions. We assemble them using state-of-the-art seals and bearing designs that meet the most stringent industry specifications. Our Track tensioning wheels are assembled on production lines with an automatic oil filling process, ensuring their reliability and durability.

They are available in various configurations, which include:

• Track tensioning wheel shell
• Track tensioning wheel with bushing and shaft
• Track tensioning wheel with brackets
• Track tensioning wheel with fork
• Track tensioning wheel with tensioner

Our Track tensioning wheels are designed to meet all work requirements in harsh conditions, ensuring reliability and long lifespan.

Quality of ITR Tensioning Wheels

Our range includes a wide selection of tensioning wheels, from mini excavators to mining machines, ensuring high quality and performance. Starting from KUBOTA® K008 (with an operating weight of 0.9 tons) up to KOMATSU® D475 A5 (with an operating weight of 101 tons), we offer comprehensive solutions. Our engineering and R&D departments in Italy, South Korea, and China collaborate to combine know-how, technology, and development capabilities. Local engineering departments in each production facility possess specialized knowledge about the components produced, and the headquarters Italian Engineering coordinates all activities.

Functionality of ITR Tensioning Wheels

The function of the tensioning wheel is to appropriately tension and guide the track chain, ensuring its proper winding. The tensioning wheel and tensioner work together to maintain a specified degree of track tension. Efficient chain tension is a key factor affecting the durability of the undercarriage. Optimal sag for conventional tracks is about 50mm (+-5mm). For example, a track in a machine with 80-horsepower with a sag of 12mm will have a tension of 2540 kg when measured at the track tensioner. However, the same machine, with the suggested sag of 50 mm, will have a tension value of 362 kg. An excessively tight track increases pressure, which translates to greater wear of the track bushings and drive wheel teeth, as well as chain contact with the tensioning wheel and rollers. Appropriate tread hardness, equal to or greater than the chain links and running and supporting rollers, ensures impact resistance and balanced durability. Material: SCMn3A, hardened to 50-55 HRC. Constant lubrication ensures minimal maintenance throughout the entire service life.
