Dimensions: |
|||
|---|---|---|---|
| A | 165.00 mm | ||
| B | 136.00 mm | ||
| C | 75.00 mm | ||
| D | 140.00 mm | ||
| E | 78.00 mm | ||
| F | 23.00 mm | ||
| G | 30.00 mm | ||
Additional Information: |
|
|---|---|
| ALL DRILLED SHAFT M16 | |
Fits among others to machines: |
|||
|---|---|---|---|
| Manufacturer: | Model: | Type: | Version: |
| JD | 25 | - | - |
| JD | 30 | - | - |
| YANMAR | YB301 | - | - |
Alternative Indexes / Cross |
|||
|---|---|---|---|
| 772122.37300 | 772122.37301 | ||
Producent: USCO SpA | Marka własna: ITR |
Adres: Via delle Nazioni, 65 41122 Modena, Włochy | Kontakt: info@usco.it +39 059 9780111 |
Certyfikat wyłącznej sprzedaży produktów ITR
GLIMAT SP.ZO.O. jest wyłącznym dystrybutorem podwozi gąsienicowych marki ITR na terenie Polski.
Dokładamy wszelkich starań, aby produkty, które udostępniamy do Państwa dyspozycji były tylko ze sprawdzonych źródeł.
Wieloletnie doświadczenie w pozyskiwaniu nowego asortymentu, oparte o szczegółowe analizy i budowanie długofalowych relacji z naszymi kontrahentami, pozwala nam na stworzenie bardzo korzystnych watunków gwarancyjnych dla naszych klientów.
- Na wszystkie elementy podwozi gąsienicowych obowiązuje 24 miesiące gwarancji
- Części zamienne sprzedawane przez Glimat Sp z o.o. są objęte gwarancją w zakresie wad materiałowychbądź przetworzenia materiału (wykonania) w warunkach normalnego zużycia i użytkowania przez okres 24 miesięcy poczynajac od daty dostarczenia bezpośredniemuklientowi (licząc od daty na fakturze lub liście przewozowym)

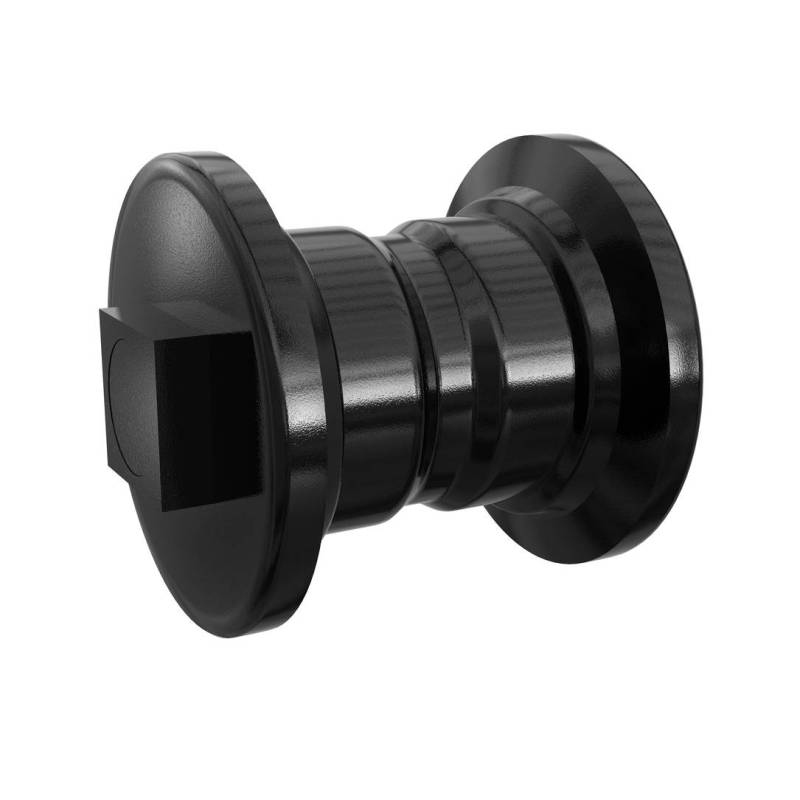

YANMAR YB301 Travel Roller
Reference
UF075Z2A
IN DELIVERY
Ask for the price: +48 32 283 94 18
unavailable -Request delivery info
Manufacturer's warranty
Fast delivery
Expert support
Easy returns
-
Frequently bought together
Single-edge lower travel roller for a mini excavator. Internal width between roller flanges 75 mm internal guiding edges for the mini excavator.
Travel rollers for ITR mini excavators and compact loaders are specially designed for the toughest applications and environments. A full range of sizes and types is available for all popular brands and models. ITR rollers are forged products made from selected materials such as boron steel, high-strength castings, and top-quality components. Deep heat treatment and precise machining ensure uniformity and consistency of production. Accurate assembly, lifetime lubrication, and quality control during and after production ensure product performance and reliability. The range of ITR travel and support rollers includes everything from mini excavators to mining machines.
Tension rollers from KOMATSU® PC05 (machine operating weight 1.4 tons) to HITACHI® EX25OO (machine operating weight 248 tons)
The single flange roller shell is used in excavators.
The durability of the roller shell tread equals the durability of the track chain links. No maintenance is required throughout the roller's life.
The roller shell is made from deeply hardened steel and designed to be vibration-resistant. Hardness 50 – 58 HRC.
Shafts and bearings are designed to reduce friction and wear and ensure maximum strength. Lubricated for life to minimize maintenance.
Bronze sliding bearing, excellent for supporting the tension roller. Provides stability and durability, leading to efficient operation of the tensioning system.
The bushing design provides a large surface area for better load distribution. The soft bronze coating in the bearing protects against any small contaminants that could damage the shaft and seals.
Duo-Cone seal. Seals the oil inlet. The Duo-Cone seal consists of two metal sealing rings and two rubber ones.
The rubber rings provide appropriate pressure on both sides of the metal sealing rings. Resistant to permanent deformation and temperature changes from -40°C to 110°C. Duo-Cone seals are designed to withstand several tread lifetimes, depending on individual conditions.
Oil. Oil-lubricated track rollers use oil that cools and lubricates better than grease.
